Floorplan Automation Pipeline

01 / Brief

Solution

At BTP Consultants, I upgraded an existing AI workflow into a production-ready floorplan verification pipeline used by technical controllers. Before this project, controllers had to open plan PDFs, switch to a verification website, select plan areas manually, and run geometric checks one by one. I handled the existing codebase and end-to-end data flow: PDF intake, polygon extraction through Kreo, post-processing to improve polygon classification and metadata enrichment, then rule-based verification for PMR and fire safety, followed by reporting. The system reduced repetitive low-value manual work and improved verification speed and consistency.

02 / Constraints

Problem

• Handling false polygons and wrong classifications before compliance checks
• Modeling geometric rules in a polygon-heavy environment
• Interpreting business context where some norms are subject to interpretation
• Optimizing algorithms to reduce waiting time for users

03 / System

Architecture / workflow

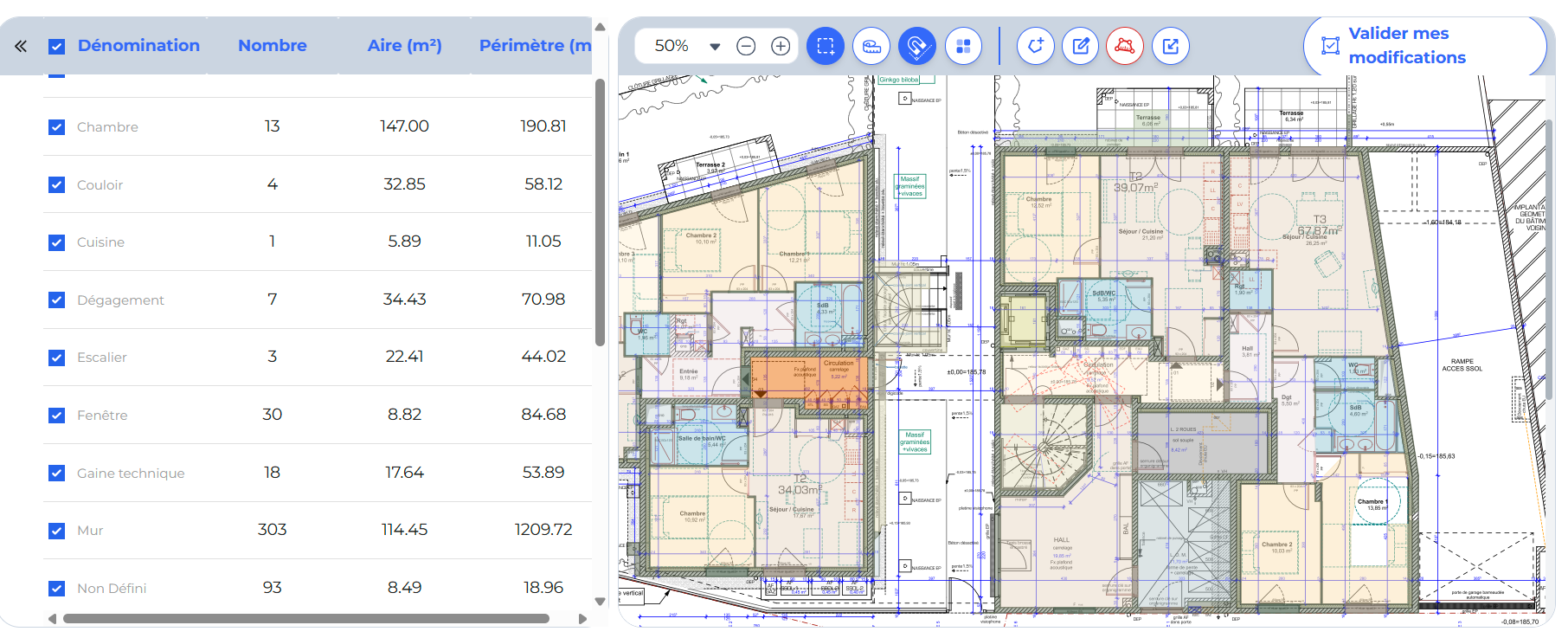

• PDF deposit and polygon extraction pipeline connected to Kreo

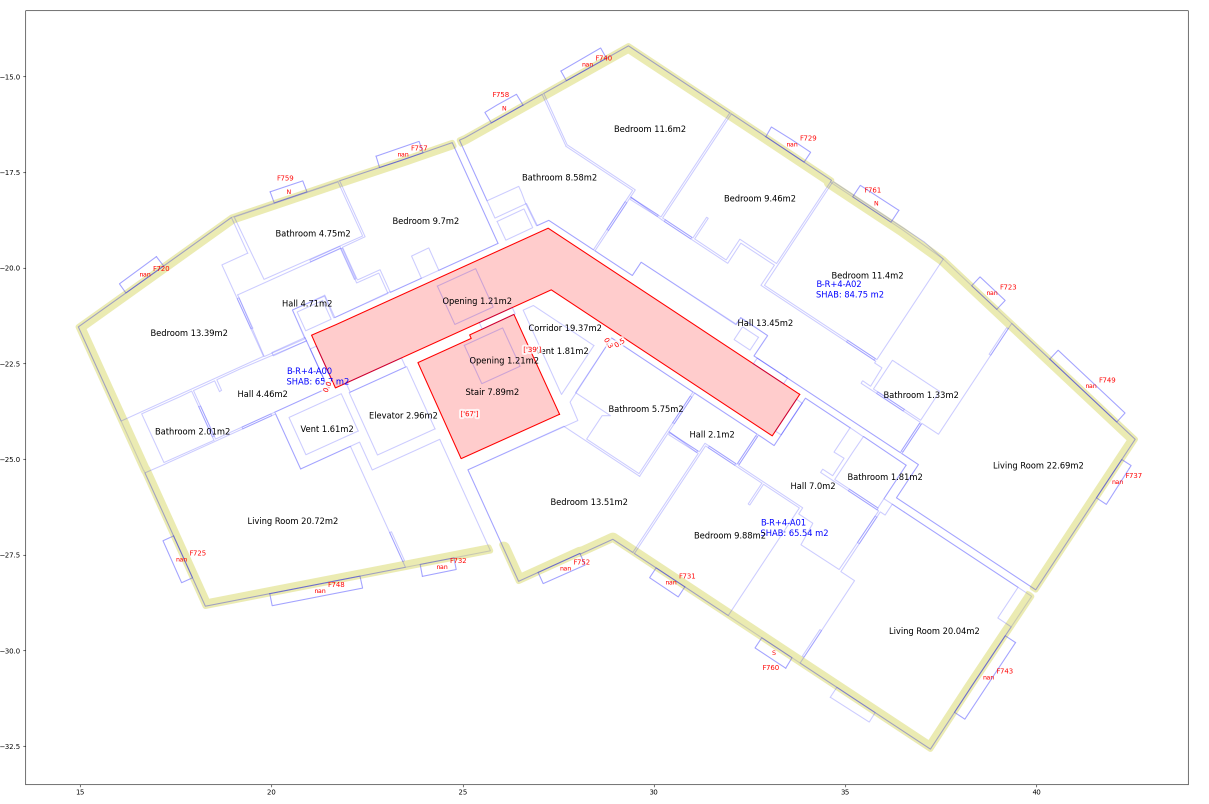

• Post-processing for polygon relations and metadata enrichment (room-in-flat, main door, geometry context)

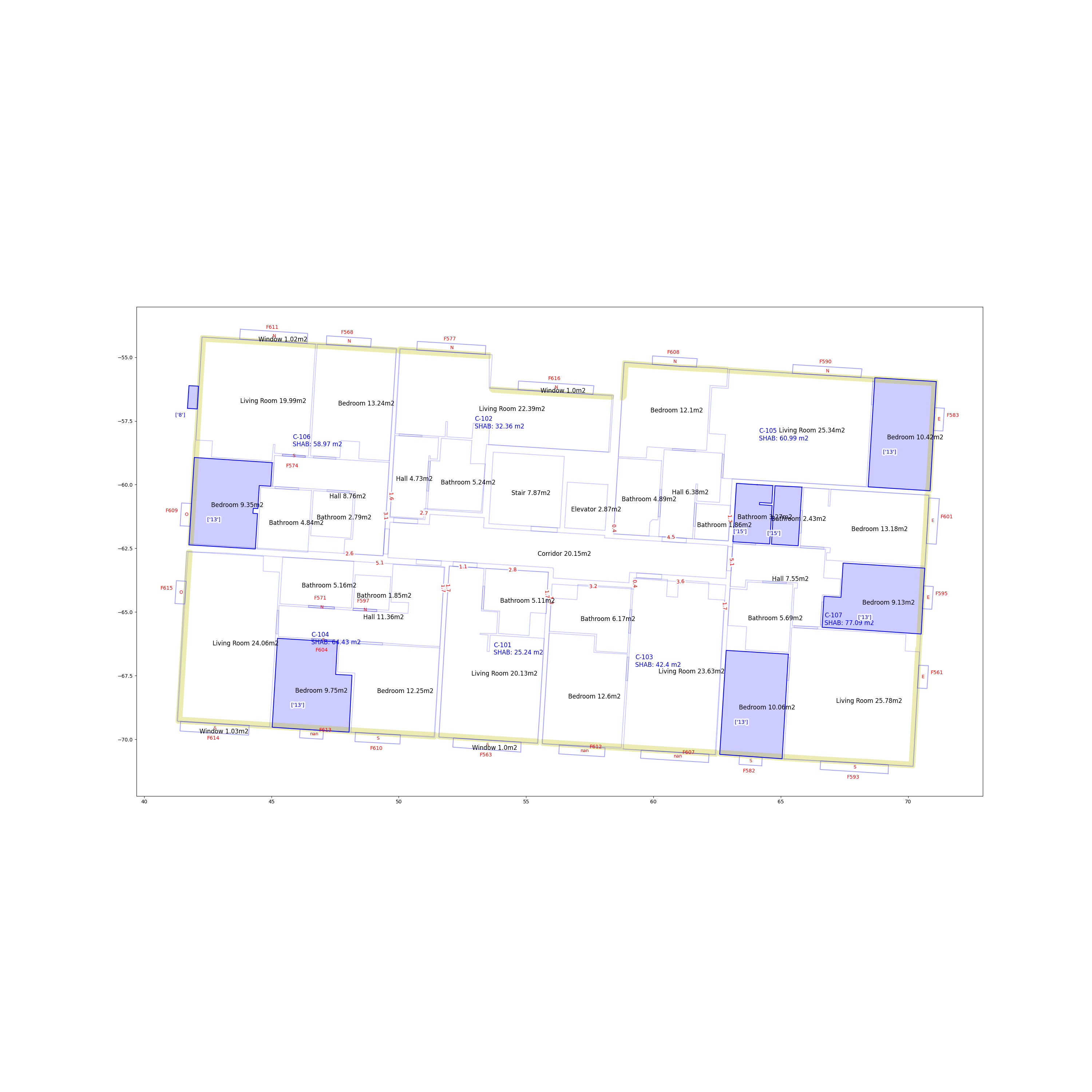

• Rule-based compliance checks for PMR accessibility and fire safety
• Verification report generation for technical controllers

04 / Evidence

Results / impact

• 30% productivity increase on floorplan verification workflows
• 90,000 hours of time saved
• ~2 million euros in economic gains
• Major reduction of repetitive low-value manual checks
